Industrial Heavy-Duty Plastic Tote Boxes & Distribution Containers: Product Overview & Technical Classification
Industrial plastic tote boxes serve as structural returnable transport packaging (RTP) engineered for automated warehousing, assembly lines, and closed-loop supply chains. Molded from high-density polyethylene (HDPE) or impact-modified polypropylene (PP), these containers maintain dimensional stability under high static and dynamic loads.
Unlike consumer storage bins, industrial totes are designed for high-cycle turnaround, resisting fatigue from repetitive conveyor indexing, forklift handling, and robotic stacking.
-

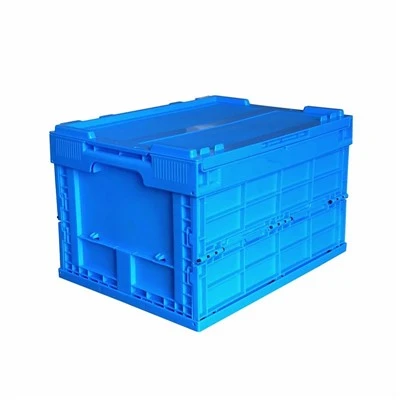

![Heavy-Duty Plastic Tote Box]()
Heavy-Duty Plastic Tote BoxEngineered for automated and manual material handling workflows, our industrial plastic storage tote boxes deliver consistent footprint stability, high impact resistance, and dependable vertical -

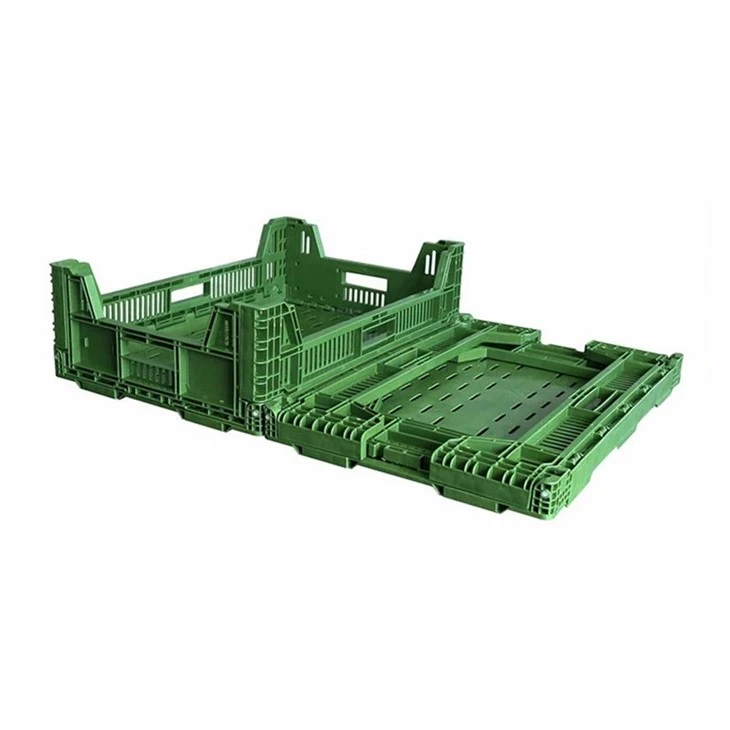

![Industrial Plastic Tote Box]()
Industrial Plastic Tote BoxIndustrial plastic tote boxes provide standardized material handling, Work-In-Progress (WIP) transport, and automated storage solutions. Molded from high-density polyethylene (HDPE) or -

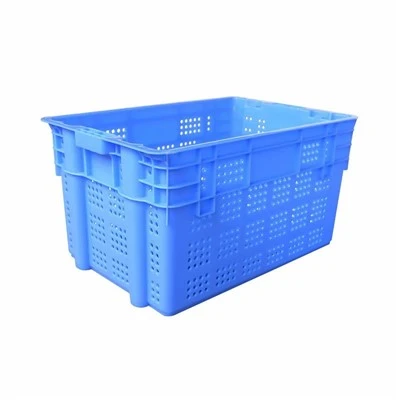

![Plastic Storage Tote Box]()
Plastic Storage Tote BoxIndustrial-grade plastic storage totes engineered for high-frequency order picking, automated conveying, and heavy component transport. Molded from impact-resistant virgin or certified recycled -

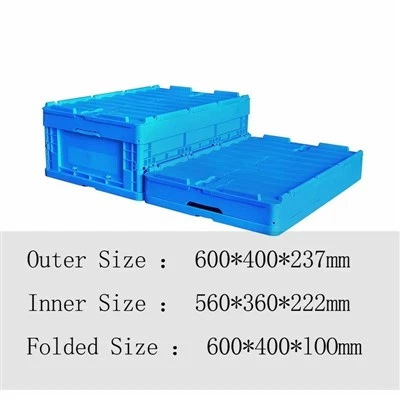

![Foldable Plastic Tote Box]()
Foldable Plastic Tote BoxIndustrial-grade Foldable Plastic Tote Boxes are engineered for closed-loop supply chains requiring high volumetric reduction ratios during empty returns. Unlike rigid crates, these containers -

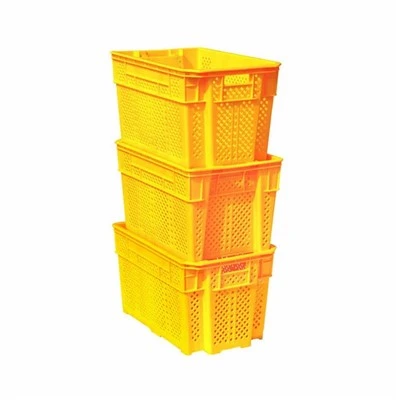

![Stackable Plastic Tote Box]()
Stackable Plastic Tote BoxIndustrial stackable plastic tote boxes provide standardized unit load containment for automated assembly lines, high-density warehousing, and closed-loop supply chains. Fabricated via high-pressure -

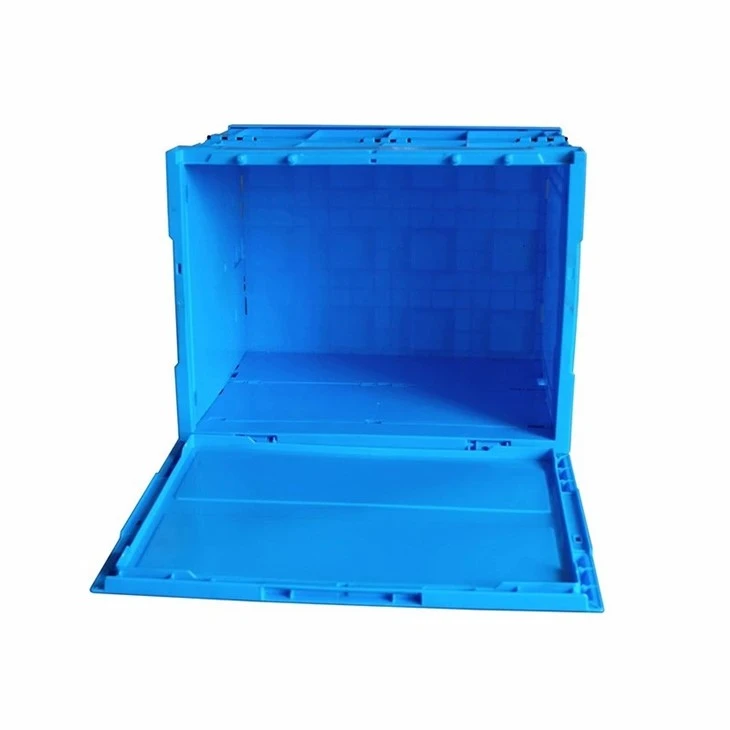

![Plastic Tote Box With Lid]()
Plastic Tote Box With LidEngineered for high-frequency order fulfillment, automated storage and retrieval systems (AS/RS), and closed-loop distribution networks. Molded from impact-resistant virgin resin to prevent cracking
Technical Specifications & Model Matrix
|
Model Code |
External Dimensions (L x W x H) |
Internal Dimensions (L x W x H) |
Tare Weight |
Static Load Capacity |
Dynamic Load Capacity |
Stacking Load Limit |
Material |
|
ITB-6432 |
600 x 400 x 320 mm (23.6 x 15.7 x 12.6 in) |
555 x 360 x 305 mm (21.9 x 14.2 x 12.0 in) |
2.85 kg (6.28 lbs) |
300 kg (661 lbs) |
50 kg (110 lbs) |
600 kg (1,323 lbs) |
Virgin HDPE |
|
ITB-6040 |
600 x 400 x 400 mm (23.6 x 15.7 x 15.7 in) |
555 x 360 x 380 mm (21.9 x 14.2 x 15.0 in) |
3.20 kg (7.05 lbs) |
300 kg (661 lbs) |
50 kg (110 lbs) |
600 kg (1,323 lbs) |
Virgin HDPE |
|
ITB-4030 |
400 x 300 x 280 mm (15.7 x 11.8 x 11.0 in) |
365 x 265 x 265 mm (14.4 x 10.4 x 10.4 in) |
1.60 kg (3.53 lbs) |
150 kg (331 lbs) |
30 kg (66 lbs) |
300 kg (661 lbs) |
Impact PP |
Application & System Compatibility
Automated Storage and Retrieval Systems (AS/RS):
Ribbed reinforced bottom designs ensure friction coefficients compatible with roller and belt conveyors, preventing slip or jam events during high-speed sorting.
Automotive Assembly WIP Transport:
Oil-resistant interior surfaces prevent fluid absorption when handling machined metal components drenched in cutting fluids.
Cold Chain & Food Processing:
Food-grade formulations (FDA-compliant) withstand blast freezing down to -25°C (-13°F) without embrittlement or structural failure.
Returnable Dunnage Integration:
Compatible with custom thermoformed or foam dunnage inserts for delicate electronic parts and precision machined gears.
Material Selection & Compounding: Injection molding utilizes 100% virgin resin sourced from tier-1 petrochemical suppliers (MFR 0.8 - 1.2 g/10 min at 190°C / 2.16 kg), ensuring optimal molecular weight distribution for impact resistance. Regrind materials are strictly excluded from structural load-bearing lines.
Processing Equipment: Production runs on twin-platen injection molding machines ranging from 800T to 2800T clamping force, equipped with closed-loop servo hydraulics to control cavity pressure curves and eliminate sink marks or internal stress voids.
Dimensional Precision & Tooling: Tooling cavities are CNC-machined from P20 tool steel with thermal conformal cooling channels. This keeps dimensional variation within +/- 0.5 mm (+/- 0.02 in), preventing interference in automated stackers.
Quality Verification & Testing: Every production batch undergoes destructive and non-destructive testing per ASTM and ISO standards:
Drop Impact Test (ASTM D2463): Fully loaded totes dropped from 2.5 meters (8.2 ft) at -20°C (-4°F) onto concrete surfaces.
Top-Load Compression Test (ISO 12048): Simulating a 5-high stack in warehouse conditions over a 72-hour sustained load window.
Hinge Fatigue Testing: Attached lid containers undergo 10,000 open-close cycles at ambient and sub-zero temperatures.
Supplier Evaluation Guide for Procurement Engineers
When auditing manufacturing partners for plastic returnable containers, verify the following baseline metrics:
Press Tonnage Verification:
Ensure the supplier operates presses >= 1500T for large-format bins (600 mm x 400 mm / 23.6 in x 15.7 in and above) to guarantee uniform wall thickness (>= 3.2 mm / 0.126 in).
Raw Material Traceability:
Request resin COA (Certificate of Analysis) per batch confirming melt flow index and density metrics.
Mould Maintenance Protocol:
Inquire about hot runner system maintenance schedules and cavity venting checks to prevent flash and short shots.
Procurement Decision & Ordering Parameters
Minimum Order Quantity (MOQ):
500 units per standard color/size SKU. Custom color matching (Pantone reference required) requires an MOQ of 2,000 units.
Packaging & Palletization:
Totes are nested or stacked securely on ISPM 15 heat-treated wooden pallets, secured with stretch film and edge protectors for ocean freight.
Lead Time:
Standard stock SKUs ship within 7 - 10 business days. Custom OEM tooling projects require 35 - 45 days from sample approval.
Request for Quotation (RFQ) Checklist
To accelerate your quotation process, include the following parameters in your inquiry:
Exact external dimensional limits (L x W x H in millimeters or inches).
Required static and dynamic load ratings.
Operating temperature range (e.g., ambient vs. cold storage).
Container style: Attached lid (crocodile style), open stackable, or nestable.
Annual volume forecast and delivery destination port.
Request for 3D CAD models (STEP/IGES) for layout simulations.
