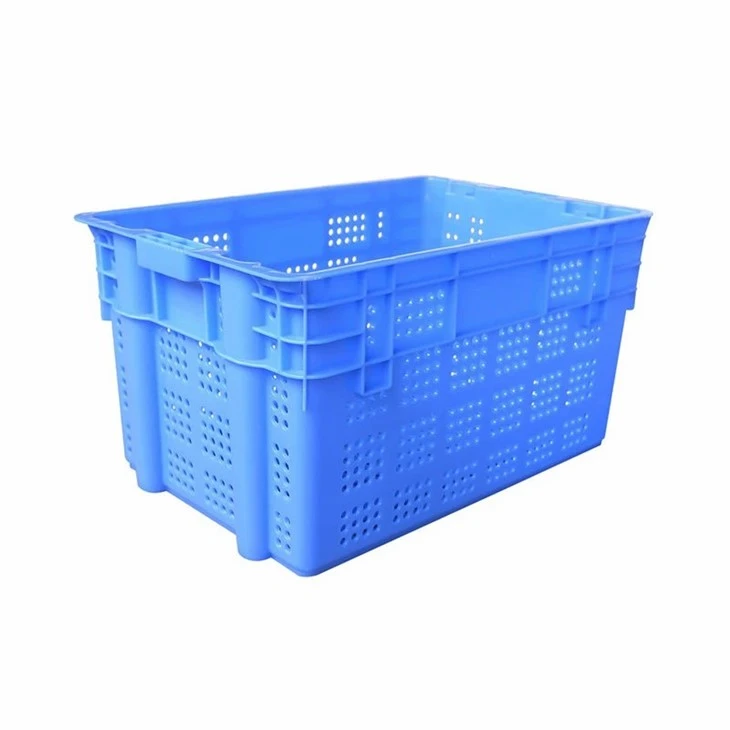

Plastic Storage Tote Box

Heavy-Duty Industrial Plastic Storage Tote Boxes for Automated & Manual Material Handling

Industrial-grade plastic storage totes engineered for high-frequency order picking, automated conveying, and heavy component transport. Molded from impact-resistant virgin or certified recycled polymers to withstand rigorous warehouse environments without structural degradation.

Material Composition
Primary Polymer: High-Density Polyethylene (HDPE) or Copolymer Polypropylene (PP-H). Both options feature high environmental stress-crack resistance (ESCR) and chemical inertness against industrial oils, greases, and mild acids.

Additive Package: UV-stabilized masterbatch prevents polymer breakdown under direct sunlight or fluorescent warehouse lighting. Anti-static additives available upon request for electronic component manufacturing.

Manufacturing & Quality Control
Injection Molding Technology: Processed on 2,800-ton computer-controlled hydraulic injection molding machines. Multi-stage cavity pressure control ensures uniform wall thickness (+/- 0.15 mm) and eliminates internal residual stresses that cause warping.

Structural Design: Reinforced ribbed base and corner gussets prevent deflection under maximum stack weight. Smooth internal walls eliminate sharp edges to protect stored goods and simplify automated cleaning cycles.

Industrial Testing Protocol
Drop Testing: Drop-tested fully loaded at -20°C from a height of 1.5 meters onto concrete to verify cold-impact resistance.

Corner Compression Testing: Sustains continuous vertical compressive loads up to 1,200 kg in ambient warehouse conditions.

Dimensional Tolerance Inspection: CMM (Coordinate Measuring Machine) verification on every 500th production cycle to ensure strict adherence to automated conveyor interface standards.

Automated Storage and Retrieval Systems (AS/RS): Rigid bottom ribs minimize deflection on roller conveyors and chain-driven live rollers (<= 3 mm sag under full load).

Automotive & Electronic Assembly: Anti-static (ESD) formulations protect sensitive circuit boards and precision metal components from electrostatic discharge.

Cold Chain & Food Processing: Food-grade FDA-compliant resin withstands blast freezer temperatures down to -25°C without embrittlement or cracking.

Closed-Loop Distribution: Nestable when empty (saving up to 70% return transport space) and stackable when loaded with integrated locking lids.

Facility Capabilities: 45 automated injection molding presses ranging from 500T to 4000T tonnage capacity. Annual production output exceeds 2.4 million industrial containers.

Quality Management Systems: ISO 9001:2015 certified manufacturing facility. Full traceability from raw material lot number to finished product via laser-etched production date stamps.

Compliance Standards: REACH compliant, RoHS compliant, and FDA 21 CFR 177.1520 food contact certification available for food-grade resin orders.

OEM / Customization Services: Custom color matching (Pantone-based), permanent thermal-transfer barcode labeling, RFID tag embedding, and embossed company logo options.

To generate an accurate quotation within 24 hours, include the following parameters in your inquiry:

Volume Requirements: Annual quantity and trial order size.

Material Grade: Standard Virgin HDPE/PP vs. Recycled Blend vs. ESD-Safe compound.

Operational Environment: Expected temperature range and maximum stacking height.

Customization Needs: RFID integration, color coding, or hot-stamped serialization.

Destination Port / Delivery Terms: Incoterms (FOB Ningbo/Shanghai, CIF, or DDP warehouse delivery).
