Product Overview & Core Engineering Specifications

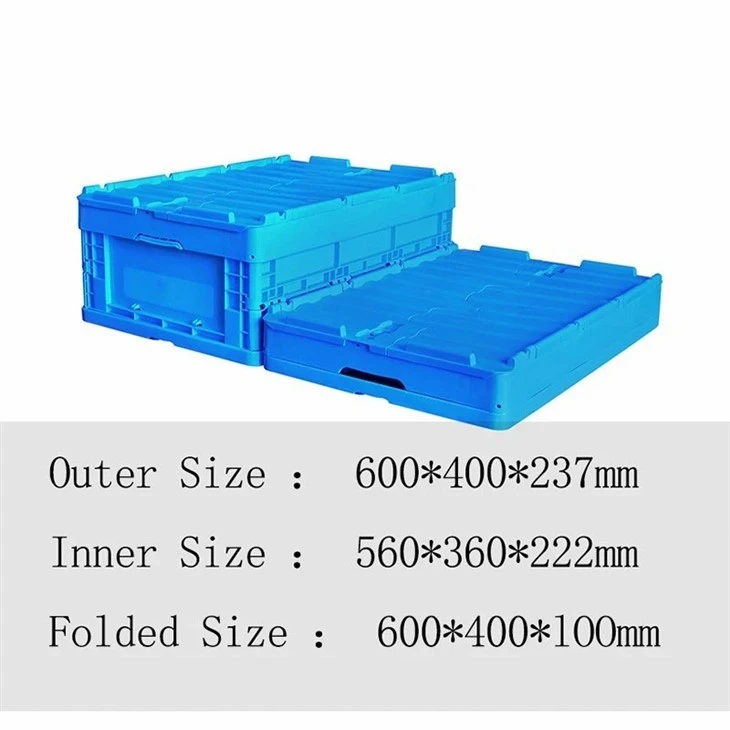

Foldable Plastic Tote Box | Industrial Buyer's & Engineering Guide
Industrial-grade Foldable Plastic Tote Boxes are engineered for closed-loop supply chains requiring high volumetric reduction ratios during empty returns. Unlike rigid crates, these containers feature precision-molded locking hinges and snap-fit wall panels designed to endure thousands of collapse-and-erect cycles without structural degradation.
Technical Specification Matrix
|
Parameter |
Specification Range / Standard |
|
Material Composition |
100% Virgin Impact-Modified HDPE or PP (Optional ESD-conductive compounds available) |
|
Manufacturing Process |
High-Pressure Injection Molding |
|
Volumetric Reduction Ratio |
Up to 75% - 85% when folded (depending on footprint) |
|
Dynamic Load Capacity |
30 kg to 70 kg (Unit load during transit) |
|
Static Stacking Load |
300 kg to 600 kg (Up to 6-8 high when loaded, rack-dependent) |
|
Temperature Tolerance |
-20°C to +60°C (Standard); -30°C to +40°C (Cold-chain grade) |
|
Standard Footprints (mm) |
600 x 400, 400 x 300, 800 x 600 (Custom dimensions available upon engineering review) |
Product Selection & Variant Matrix
Selecting the correct container variant depends on your load requirements, material handling equipment (MHE), and environmental exposure.
Variant Comparison
Solid Wall & Base: Engineered for automated warehouses, small parts assembly, and environments requiring dust or moisture protection. Features reinforced ribbing on exterior walls to prevent bulging under maximum payload.
Vented / Perforated Panels: Utilized in agricultural supply chains, food processing, and automotive wet-process lines. Perforation percentage ranges from 20% to 40%, optimizing airflow while maintaining structural integrity.
ESD-Safe (Electrostatic Discharge): Formulated with carbon-loaded polypropylene. Surface resistivity maintained between 10^4 and 10^6 ohm/sq for safe transport of sensitive microelectronics and PCB assemblies.
Industrial Application Scenarios
Automotive Assembly (JIT / JIS Supply Chains): Used for transporting raw fasteners, wire harnesses, and machined engine components directly to the assembly line. Collapsible design clears factory floor space instantly once parts are depleted.
Retail Distribution & Order Fulfillment: Integrates into pick-and-pack operations. Flat-folding capability allows 4 to 5 times more empty totes to fit onto return transport vehicles compared to rigid nesting totes.
Cold Chain & Perishables: Food-grade resin formulations withstand blast-freezing environments down to -30°C without embrittlement or cracking upon impact.
Supplier & Manufacturing Evaluation Criteria
Procuring returnable packaging requires rigorous supplier verification. Evaluate potential manufacturing partners against these benchmark criteria:
Tooling & Injection Machinery:
Verify clamp tonnage of injection molding machines (ranging from 500T to 2500T) to ensure uniform wall thickness and zero sink marks in thick-walled sections and hinge joints.
Raw Material Traceability:
Demand Certificate of Analysis (CoA) per batch confirming virgin polymer grade, melt flow rate (MFR), and absence of degraded regrind material that compromises impact strength.
In-House Quality Control Testing:
Drop Testing: Drop-tested fully loaded at -20°C from a height of 1.2 meters onto concrete to verify hinge durability.
Compression Testing: Universal testing machine verification for top-load stacking resistance under simulated warehouse conditions.
Hinge Fatigue Cycling: Automated pneumatic actuation testing verifying minimum 10,000 collapse-and-erect cycles without structural latch failure.
Regulatory Compliance: FDA 21 CFR 177.1520 (food contact), EU Regulation 10/2011, RoHS, and REACH compliance documentation.
Procurement Decision & Customization Workflow
To initiate a bulk order or request sample evaluation, prepare the following operational parameters:
Payload & Stacking Requirements:
Maximum weight per box and maximum stack height in your warehouse rack system.
Handling Integration:
Manual lifting ergonomics (handgrip load limits) vs. automated conveyor compatibility (ribbed base design for roller friction).
Traceability & Branding Options:
Hot Stamping / Pad Printing: Permanent company logos or asset ownership text on side panels.
In-Mold Labeling (IML): Scratch-resistant barcodes or QR codes molded directly into the polymer matrix.
RFID Integration: Embedded UHF RFID tags in molded pockets for automated asset tracking through supply chain nodes.
Request for Quotation (RFQ) Checklist
When submitting an RFQ to our engineering team, please include the following data points to accelerate your quotation turnaround:
Target annual volume and initial trial order quantity (MOQ typically starts at 500 units per SKU).
External or internal dimensional constraints (Length x Width x Height in mm).
Required wall and base configuration (Solid, Vented, or ESD).
Destination port / Incoterms requirement (FOB, CIF, or DDP).
Required quality certifications (FDA, ISO 9001, ISO 14001).
FAQ
Q: What is the typical service life cycle of a foldable plastic tote box in an industrial environment?
A: Under normal closed-loop operating conditions with proper handling, high-quality virgin HDPE/PP collapsible totes achieve a service lifespan of 5 to 8 years, enduring thousands of cycles. Lifecycle longevity depends heavily on avoiding dynamic shock impacts during cold-temperature staging.
Q: How do the locking mechanisms prevent accidental collapse during transit?
A: Industrial totes utilize positive-locking gravity latches or spring-loaded slide locks embedded in the short walls. Once the side walls are erected, the latches engage automatically, securing the vertical corners against inward pressure from shifting loads. Manual release levers are required to collapse the walls.
Q: Can these containers be washed in industrial tunnel washers?
A: Yes. Injection-molded polypropylene and high-density polyethylene withstand industrial washing cycles, including high-pressure hot water rinses up to +80°C and chemical sanitization agents commonly used in food processing and pharmaceutical logistics.
Q: Are replacement parts available if a wall panel or hinge breaks?
A: For bulk enterprise deployments, modular design allows individual wall panels or replacement latches to be swapped out without discarding the entire container assembly, reducing total cost of ownership (TCO).
Q: What is the standard Minimum Order Quantity (MOQ) for custom-colored or branded boxes?
A: Standard stock colors (e.g., industrial blue, grey) have lower introductory batch thresholds. Custom pantone colors and integrated RFID asset tags require an MOQ starting at 1,000 units to account for polymer compounding and tooling setup.
