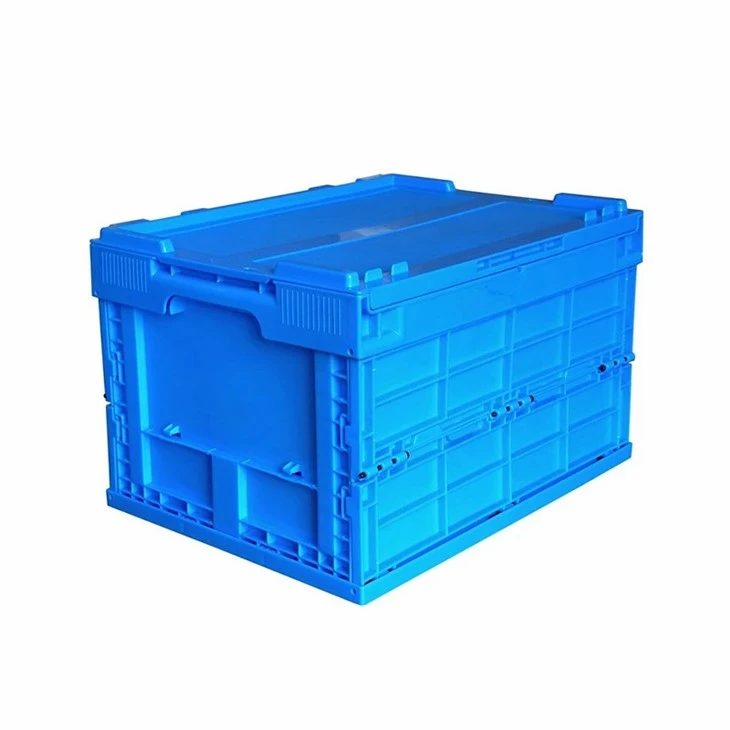

Heavy-Duty Plastic Tote Box

Engineered for Automated Logistics, Closed-Loop Distribution, and High-Load Warehousing

Engineered for automated and manual material handling workflows, our industrial plastic storage tote boxes deliver consistent footprint stability, high impact resistance, and dependable vertical stacking strength. Built via high-pressure injection molding from virgin or certified industrial-grade polymers, these totes replace single-use packaging and substandard bins in demanding supply chain environments.

Selecting the correct container configuration prevents conveyor jams, structural buckling, and wasted warehouse cube utilization.

By Lid Configuration
Attached-Lid Containers (ALCs): Integrated crocodile-style lids interlock securely when closed and nest compactly inside one another when empty. Ideal for secure closed-loop distribution, retail replenishment, and reverse logistics.

Open-Top Totes with Drop-On Lids: Open-top design provides unhindered vertical access for picking lines and WIP staging. Optional flat or ribbed lids protect contents from dust and allow safe cross-stacking.

Nestable vs. Stackable:
Nestable Totes: Tapered wall geometry allows empty bins to nest inside each other, reducing return freight volume by up to 70%.

Stackable Totes: Vertical, reinforced walls with integrated stacking rims allow loaded bins to stack securely without crushing lower containers.

By Bottom Design
Smooth Flat Bottoms: Optimized for gravity roller conveyors, belt conveyors, and silent sliding across workstation benches.

Ribbed / Reinforced Grid Bottoms: Structural ribbing absorbs impact shocks from forklift drops and provides high friction grip on pallet slats.

Our tote boxes integrate directly into standard industrial handling equipment and automated facilities:

Automated Storage & Retrieval Systems (AS/RS): Strict dimensional tolerances (+/- 0.5 mm) prevent sensor misreads and mechanical jams in miniload cranes and automated shuttle systems.

Automotive & Electronics Assembly (WIP Parts Staging): Molded-in divider slots and antistatic (ESD) compound options protect sensitive electronic components and machined metal parts from electrostatic discharge and mechanical abrasion.

Cold Chain & Food Processing: Food-grade virgin polypropylene formulations withstand blast freezing down to -30°C and commercial hot-water washing/sanitization up to +95°C without warping.

E-Commerce Fulfillment & Reverse Logistics: Tamper-evident seal holes on attached-lid models secure high-value shipments against pilferage during transit.

Polymer Options:
High-Density Polyethylene (HDPE): Exceptional low-temperature impact strength, stress-crack resistance, and chemical inertness against acids, alkalis, and industrial oils.

Polypropylene (PP): Higher rigidity, surface hardness, and superior thermal resistance for repeated autoclave or hot-wash sterilization cycles.

ESD Conductive Compounds: Carbon-loaded formulations delivering surface resistivity of 10^4 to 10^9 ohms for electronics manufacturing.

Structural Reinforcement: Corner gussets, perimeter ribs, and honeycombed base structures distribute loads evenly, preventing wall bowing under sustained maximum stacking weight.

Handling Ergonomics: Molded-in pass-through handles, open-grip handles, or shell handles eliminate sharp edges, reducing operator hand strain during manual lifting cycles.

Reliable field performance relies on rigorous production controls, from raw resin selection to final structural testing.

Injection Molding Machinery: Production runs on computer-controlled, closed-loop hydraulic injection molding presses ranging from 800 to 2,800 tons clamping force, ensuring uniform wall thickness and zero internal stress voids.

Tooling Precision: CNC-machined P20 and H13 steel molds maintain parting-line flash within strict limits, guaranteeing smooth surfaces that won't snag automated gripper arms.
Quality Testing Protocols:

Drop Impact Testing: Drop-tested at -20°C loaded to maximum payload capacity to verify corner impact durability.

Compressive Load Testing: Universal testing machines apply sustained vertical load profiles to simulate multi-tier warehouse stacking over 90-day periods.

Melt Flow Index (MFI) & Density Verification: Raw material incoming inspection verifies resin consistency before thermal processing.

Compliance & Certifications: ISO 9001:2015 quality management system, FDA compliant food-grade raw materials (upon request), and RoHS/REACH compliance documentation available for global export.

Evaluating manufacturing capability ensures long-term supply chain continuity and bulk order consistency:

Production Capacity:

45 high-tonnage injection molding machines running 24/7, delivering an average monthly output exceeding 300,000 standard industrial containers.

OEM / ODM Customization Support:
Custom Color Matching: Pantone-matched masterbatch coloring for corporate asset tracking and department segregation.

Permanent Branding: Automated hot-foil stamping and permanent sonic-welded RFID tag pockets for fixed-asset management software integration.

Packaging & Palletization: Totes are nested and strapped in high-density unit loads on ISPM 15 heat-treated export wooden pallets or durable plastic pallets, wrapped with heavy-duty stretch film to prevent transit shifting.

To streamline your quotation process, please provide the following technical parameters when submitting an inquiry:

Application Environment: Ambient warehouse, cold storage freezer, automated conveyor line, or outdoor yard exposure?

Load Requirements: Required unit payload weight and maximum number of stacked bins in storage.

Dimensions & Volume: Required external footprint (600 x 400 mm standard, etc.) and estimated annual consumption volume.

Special Features: Attached lid, open top, ESD conductive grade, custom color, or integrated RFID tracking.

Delivery Terms: Incoterms requirement (FOB, CIF, DDP) and destination port/warehouse zip code.
