Industrial Plastic Storage Boxes & Heavy-Duty Bins

Direct-Manufacturer Injection-Molded Solutions for Automated Warehousing, Assembly Lines, and Logistics Supply Chains

Product Overview & Technical Specification Matrix

Engineered for high-frequency material handling, automated conveyor compatibility, and high vertical stacking loads, our industrial containers are molded from virgin High-Density Polyethylene (HDPE) or impact-modified Polypropylene (PP). They withstand rigorous operating environments, repetitive mechanical shock, and extreme temperatures.

Model Series	Dimensions (L x W x H)	Material Grade	Static Load Capacity	Dynamic Load Capacity	Max Stacking Load	Typical Application
PSB-6420	600 x 400 x 200 mm	Virgin HDPE	300 kg	50 kg	1200 kg	Automated conveyors & parts picking
PSB-4315	400 x 300 x 150 mm	Impact PP	150 kg	30 kg	600 kg	ESD-safe electronic component sorting
PSB-8640	800 x 600 x 400 mm	Structural HDPE	600 kg	100 kg	2500 kg	Heavy automotive assembly storage

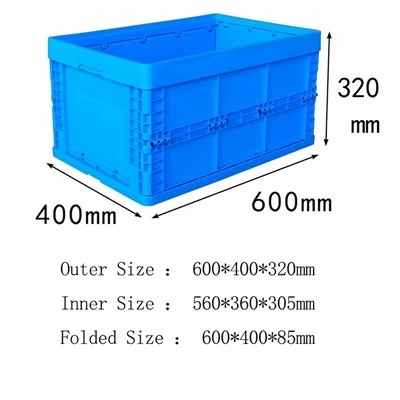

Large Plastic Storage Box
Heavy-duty industrial operations require packaging engineered to withstand rigorous mechanical stress, automated handling, and harsh environmental conditions. Unlike commercial-grade bins, our

view more

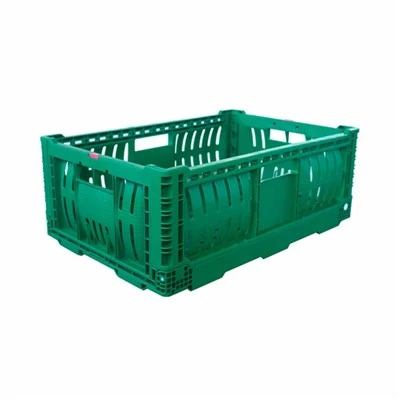

Small Plastic Storage Box
Engineered for precision sorting and heavy-duty storage in industrial environments. Molded from impact-resistant engineering thermoplastics, these small plastic storage boxes provide reliable

view more

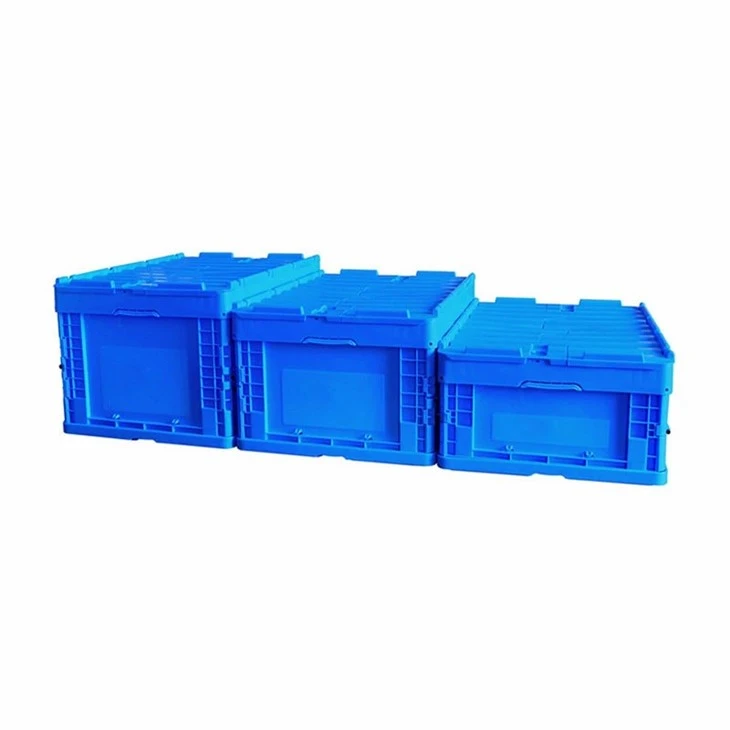

Multi-Compartment Plastic Storage Box
The ISB-MC Series heavy-duty industrial storage boxes provide controlled component segregation for high-frequency sorting, automated conveyor transport, and rigorous inventory management.

view more

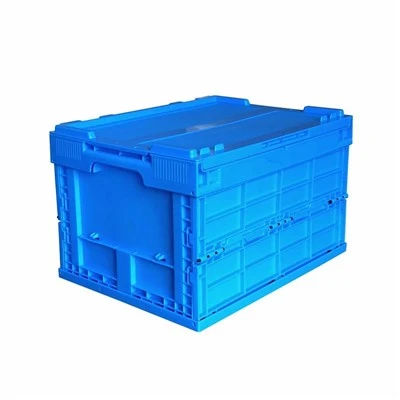

Compartment Plastic Storage Box
Specify ESD-Safe (Static Dissipative) PP. Surface resistivity must test between 10^6 and 10^9 ohms/sq to protect sensitive microchips and PCB components from electrostatic discharge.

view more
Plastic Storage Box With Lid
Containers are manufactured using 100% virgin High-Density Polyethylene (HDPE) or Polypropylene (PP) sourced from primary petrochemical suppliers to guarantee consistent structural integrity.

view more

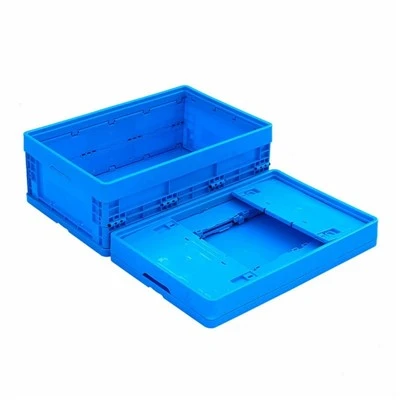

Clear Plastic Storage Box
Industrial-grade clear plastic storage boxes engineered for high-density inventory management, material handling, and automated assembly workflows. Molded via high-precision multi-cavity injection

view more

Product Selection & Configuration Guide

Selecting the proper container prevents structural failure, conveyor jams, and inventory damage. Follow this three-step parameter assessment:

Load Type Verification:
Static Load: Maximum weight applied when containers rest stationary on flat floors or bottom racks.
Dynamic Load: Maximum weight sustained while containers move via roller conveyors, forklifts, or Automated Guided Vehicles (AGVs).
Stacking Load: Cumulative vertical weight applied by fully loaded boxes stacked above. Ensure safety factors of 3x to 4x are calculated for multi-tier warehouse stacking.

Material Selection:
HDPE (High-Density Polyethylene): Delivers superior low-temperature impact resistance (down to -30 deg C) and robust resistance to dilute acids, alcohols, and bases.
PP (Polypropylene): Provides higher tensile strength, surface rigidity, and continuous service temperatures up to +80 deg C, ideal for hot-water washing cycles.
ESD Conductive Compounds: Incorporates carbon fiber additives yielding surface resistivity between 10^4 and 10^6 ohms to safely dissipate electrostatic discharge for semiconductor and PCB handling.
Dimensional Compatibility: Match base footprints to standard Euro-pallet (1200 x 800 mm) or industrial pallet (1200 x 1000 mm) grids to eliminate pallet overhang and maximize trailer cube utilization.

Industrial Application Scenarios

Automotive Assembly Plants:

Rib-reinforced heavy-duty containers store machined powertrain components, withstanding metal chip abrasion and cutting fluid exposure.

Electronics Manufacturing:

ESD-safe conductive bins protect microchips and populated circuit boards from electrostatic damage during automated pick-and-place operations.

Cold Chain & Food Processing:

Food-grade virgin PP/HDPE boxes endure blast-freezing environments down to -40 deg C and automated high-pressure steam sanitization.

Automated Warehousing (AS/RS):

Precision-molded bottom ribs and reinforced corner pillars ensure zero deflection when gripped by automated crane extractors or transported on high-speed roller tracks.

Manufacturing & Quality Verification

Reliable container performance originates in disciplined tooling design and precise injection molding parameters.

Injection Molding Machinery: Production utilizes 800-ton to 2800-ton hydraulic injection presses equipped with closed-loop servo controllers to maintain uniform melt pressure and cavity filling rates, preventing sink marks and internal stress.

Tooling Standards: P20 and H13 tool steel molds feature conformal cooling channels, holding dimensional tolerances within +/-0.15 mm across critical wall interfaces.

NContainers filled to rated payload are dropped from 1.5 meters at -20 deg C onto concrete surfaces to verify ductile fracture resistance.

Testing & Inspection Protocol:
Vertical Compression Testing: Servo-driven compression rigs apply continuous downward force until yield point to verify stated stacking limits.

Raw Material Melt Flow Index (MFI) Audit: Incoming virgin resin batches are tested per ASTM D1238 to ensure consistent polymer chain length.

Certifications: ISO 9001: 2015 quality management system, FDA-compliant food contact resin certification, and RoHS/REACH compliance documentation available upon request.

Procurement & OEM/ODM Collaboration Process

Specification Submission:

Submit technical drawings, target load parameters, operating temperatures, and annual volume forecasts.

DFM & FEA Analysis:

Engineering teams run Finite Element Analysis (FEA) simulations to evaluate structural deflection under load and optimize rib geometry before tool cutting.

Prototype Sampling:

3D-printed or rapid aluminum-tooled prototype samples shipped within 14 business days for physical testing.

Mass Production & Quality Traceability:

Batch numbers and resin lot codes laser-etched onto container bases for full traceability. Standard container lead time: 20–25 days per 40-foot high-cube container (40HQ).

Request a Quote (RFQ) / Technical Inquiry

To receive an accurate quotation or engineering evaluation, please provide the following details in your inquiry:

Target container dimensions and style (stackable, nestable, folding, or lidded)

Required static and dynamic load ratings

Operating environment (temperature range, chemical exposure, automated system interface)

Estimated annual volume and delivery port / destination

FAQ

Q: What is the difference between virgin and recycled polymer grades for industrial boxes?

A: Virgin polymer (HDPE/PP) utilizes uncompromised raw petrochemical resins, delivering predictable impact strength, UV stabilization, and long-term fatigue resistance. Recycled polymer blends reduce material costs and carbon footprints but exhibit lower impact resistance and higher batch-to-batch property variance. Virgin resin is strictly recommended for automated high-bay racking and heavy vertical stacking loads.

Q: Can custom corporate logos or RFID tracking tags be integrated into the boxes?

A: Yes. Hot-foil stamping, screen printing, and permanent molded-in embossed logos are available. For automated inventory tracking, we can mold recessed pockets or ultrasonic weld RFID tags (UHF/HF) directly into the container sidewall or rim without compromising structural integrity.

Q: What causes plastic storage boxes to warp or bow during long-term stacking?

A: Warping occurs when stacking loads exceed the container's yield strength at elevated ambient temperatures, or when sub-par cooling rates during injection molding introduce residual internal stresses. Proper wall thickness distribution, rib gusset design, and selecting structural grade HDPE/PP mitigate long-term creep deformation.

Q: What are the standard Minimum Order Quantities (MOQ) for custom color or custom dimensions?

A: For standard catalog sizes, MOQ starts at 500 units per color. For custom mold development (OEM/ODM), MOQ is determined by annual volume projections required to amortize tooling investments, typically starting at 3,000 to 5,000 units per production run.
